In the world of immersive visual displays, multi-channel curved projection systems have emerged as a revolutionary technology, offering unparalleled visual experiences. These systems combine multiple projectors to create a seamless, large-scale curved display with wider fields of view, higher resolution, and a more immersive feel than traditional flat-screen projections. However, achieving flawless visuals on curved screens requires advanced technologies, and this is where LiDAR (Light Detection and Ranging) steps in as a game-changer.
In this blog, we’ll explore the implementation principles of multi-channel curved projection systems, the challenges they address, and how LiDAR technology enhances their performance.
What is Multi-Channel Curved Projection?

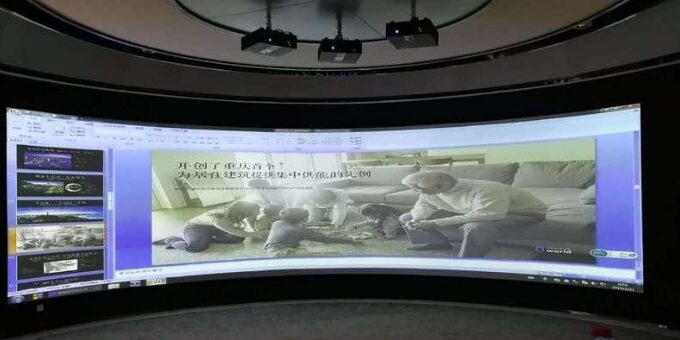

Multi-channel curved projection systems use multiple projectors to create a large, seamless display on curved screens, such as cylindrical (arc-shaped) or spherical surfaces. These systems are designed to deliver:
- Immersive visuals: A wider field of view that surrounds the audience.
- High resolution: Crisp, detailed images across the entire display.
- Seamless integration: No visible gaps or distortions between projected images.
To achieve this, several core technologies are employed:
- Digital Geometric Correction: Corrects nonlinear distortions caused by curved surfaces.
- Multi-Channel Synchronization: Ensures all projectors work in harmony.
- Edge Blending: Smoothly blends overlapping edges of projected images.
- Curved Screen Fabrication: Custom screens designed for specific radii and shapes.
The Challenge: Nonlinear Distortion on Curved Screens
Projectors are designed for flat screens, so when projecting onto curved surfaces, images naturally distort. This happens because the distance from each projector to every point on the curved screen varies, causing stretching or compression of the image.
To solve this, geometric correction is applied. Traditionally, this is done through:
- Optical Correction: Using specialized projectors with built-in distortion correction.
- Software Correction: Adjusting the image output to match the screen’s curvature.
However, these methods often require manual calibration and can be time-consuming. This is where LiDAR technology comes into play.
How LiDAR Enhances Multi-Channel Curved Projection Systems
LiDAR is a remote sensing technology that uses laser pulses to measure distances and create precise 3D maps of environments. When integrated into multi-channel curved projection systems, LiDAR offers several advantages:
1. Precision Calibration
LiDAR can scan the curved screen and generate a highly accurate 3D model of its surface. This data is used to automate geometric correction, ensuring that the projected images align perfectly with the screen’s curvature.
2. Real-Time Adjustment
LiDAR can continuously monitor the screen and projectors, making real-time adjustments to account for any changes in the environment, such as screen movement or thermal expansion.
3. Seamless Edge Blending
By precisely mapping the screen’s surface, LiDAR helps optimize edge blending, ensuring that overlapping images from multiple projectors merge seamlessly without visible gaps or color mismatches.
4. Enhanced Immersion
LiDAR’s ability to map the audience’s position and movements allows for interactive and adaptive visuals, creating a more engaging and immersive experience.
Advantages of Multi-Channel Curved Projection Systems
- Immersive Experience: Curved screens provide a wider field of view, making viewers feel part of the scene.
- High Resolution: Combines the resolution of multiple projectors for ultra-sharp images.
- Seamless Integration: Advanced blending and correction eliminate visible seams.
- Versatility: Supports flat, cylindrical, spherical, and custom-shaped screens.
- Scalability: Can be adapted for small or large installations.
Applications of Multi-Channel Curved Projection Systems
- Command and Control Centers: Used in traffic monitoring, network management, and emergency response.
- Virtual Simulations: Ideal for military training, urban planning, and 3D GIS applications.
- Entertainment and Exhibitions: Perfect for museums, planetariums, and theme parks.
- Corporate and Education: Enhances presentations, training, and collaborative workspaces.
- Tourism and Marketing: Creates captivating displays for brand promotion and visitor engagement.
Conclusion
Multi-channel curved projection systems represent the pinnacle of immersive visual technology, offering stunning, distortion-free displays on curved screens. With the integration of LiDAR technology, these systems achieve unprecedented levels of precision, automation, and interactivity, making them ideal for a wide range of applications.
Whether you’re designing a cutting-edge command center, a captivating museum exhibit, or a state-of-the-art virtual simulation, the combination of multi-channel curved projection and LiDAR ensures a visually stunning and immersive experience.
